The S-Mine: Engineering Terror in WWII
The German S-mine, infamously known as the "Bouncing Betty," stands as one of World War II's most feared anti-personnel devices. Developed in the 1930s, this innovative yet devastating weapon would change the face of defensive warfare and leave an indelible mark on military history.
The German S-mine (Schrapnellmine) entered production in 1935, with Germany manufacturing over 1.93 million units until their defeat in 1945. Two main variants were produced: the SMi-35 and SMi-44, with only minor differences between them. The SMi-44 featured an offset fuze compared to the SMi-35's central fuze design.
Weight: 4.1 kilograms (9.0 lb)
Height: 127-150 mm (5.0-5.9 inches)
Diameter: 102 mm (4.0 inches)
Main Charge: 182 grams of TNT
Effective Radius: 20 meters (lethal), up to 100 meters (injury potential)

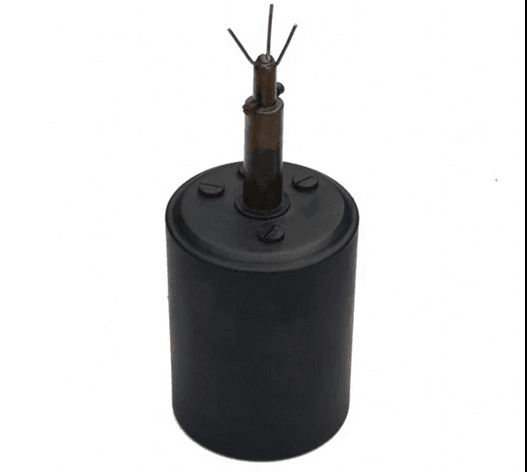

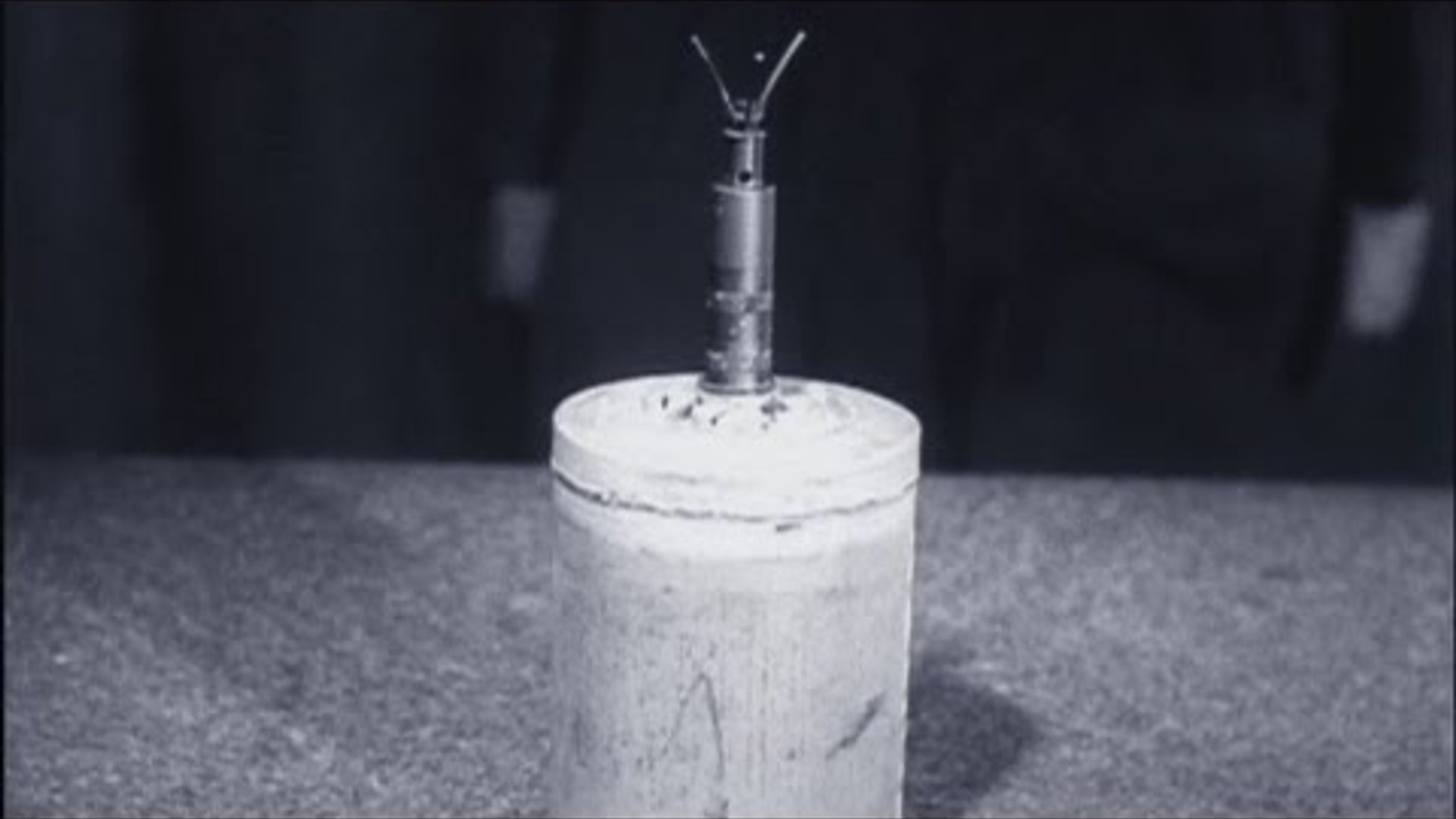

The S-mine's design was deceptively simple yet ingeniously effective. Its cylindrical steel body housed two separate charges: a small propelling charge and the main explosive charge. When triggered, the first charge launched the mine approximately one meter into the air, where the main charge detonated, dispersing roughly 360 steel balls and shrapnel in a deadly circular pattern.
The mine could be triggered in multiple ways:
Pressure activation (8 kg of pressure)
Trip wire
Electronic detonation
Direct pressure fuse or offset fuse (depending on model)
First Combat Deployment: The S-mine's first combat test came during the Phony War (September 7-11, 1939), when French forces probed the German Saar region. The mine's effectiveness in repelling these incursions earned it the French nickname "the silent soldier" .
Allied forces encountered these devices across various European theaters, from the beaches of Normandy to the forests of the Ardennes. The psychological impact often exceeded its physical threat, forcing troops to move cautiously and significantly slowing advance operations.
The S-mine's influence extended well beyond WWII, inspiring numerous similar designs in modern military engineering. Its psychological effect on troops and its technical innovation made it one of the war's most significant anti-personnel weapons.
Current Implications: Despite extensive demining efforts, landmines continue to pose risks decades after their deployment:
More than 27% of Libyan farmland remains unusable due to World War II minefields.
Sporadic incidents involving landmines still occur in North Africa and European countries.
Although these mines were designed to have a lifespan of 2 to 7 years, some remain hazardous to this day.
